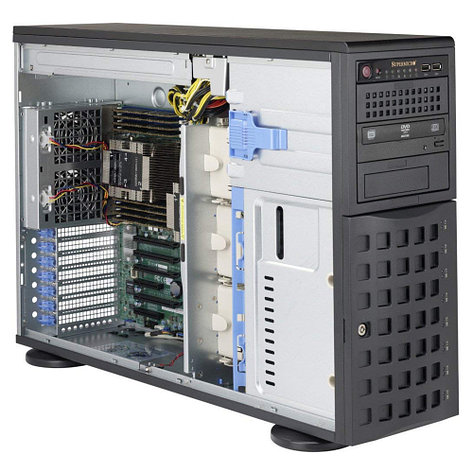

VSSupeсервер Server X11DPL-I/SC745TQ-R920

VSSuperServer X11DPL-I/SC745TQ-R920 Black
• Tower (452 x 178 x 647 mm)
• Intel Xeon Gold 5115 LGA 3647 13.75Mb
2.4Ghz (CD8067303535601S R3GB)
• Intel® C621 chipset
• 64GB (2x32GB) DDR4 2666MHz ECC Reg. / Up
to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to
2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8
DIMM slots;
Up to 1TB Intel Optane DC Persistent Memory in
memory mode (Cascade Lake Only)
• Dual LAN with Lewisburg Marvell 88E1512 PHY
• Intel® C621 controller for 10 SATA3 (6 Gbps)
ports; RAID 0,1,5,10
• LSI 9361-8I 12Gb/s RAID 0/1/10/5/6/50/60
8i-ports 2Gb
• Expansion slots: 2 PCI-E 3.0 x16,3 PCI-E 3.0
x8,1 PCI-E 3.0 x4 (in x8 slot) M.2 Interface: PCI-E
3.0 x4 M.2 Form Factor: 2260, 2280
• 8 x 3,5" SAS/SATA Hot-Swap Drive Bays
2 x 2000GB SAS 12Gb/s 7,2K RPM
4 x 4000GB SAS 12Gb/s 7,2K RPM
• DVD-RW
• ASPEED AST2500 BMC
• 920W (1+1) Redundant Platinum Level Power
Supply
• 3x Middle 8cm (5000 rpm) PWM Fans & 2x 8cm
(5000 rpm) PWM Fans
